Garment Racking Systems

Garment Racking Systems Engineered to Optimize Apparel Storage and Retrieval

Garment racking is a foundational component of efficient apparel handling, storage, and retrieval management. White’s Conveyor Garment Racking Systems are trusted across industries for their ability to maximize productivity, reduce costs, and enhance operational efficiency.

White Conveyors designs and manufactures advanced garment racking solutions that integrate directly with automated garment conveyor systems. Garment racking solutions are built to support continuous flow operations, enabling apparel to be stored, buffered, sequenced, and transported with precision. From production and finishing to distribution and shipping, White Conveyors’ garment racking systems are engineered for durability, scalability, and operational efficiency.

In addition to complete garment racking and conveyor systems, White Conveyors supplies a full range of common conveyor parts to support ongoing operation and maintenance. Whether upgrading an existing installation or sourcing critical spares, White Conveyors provides reliable parts backed by decades of garment handling expertise.

Rail Parts

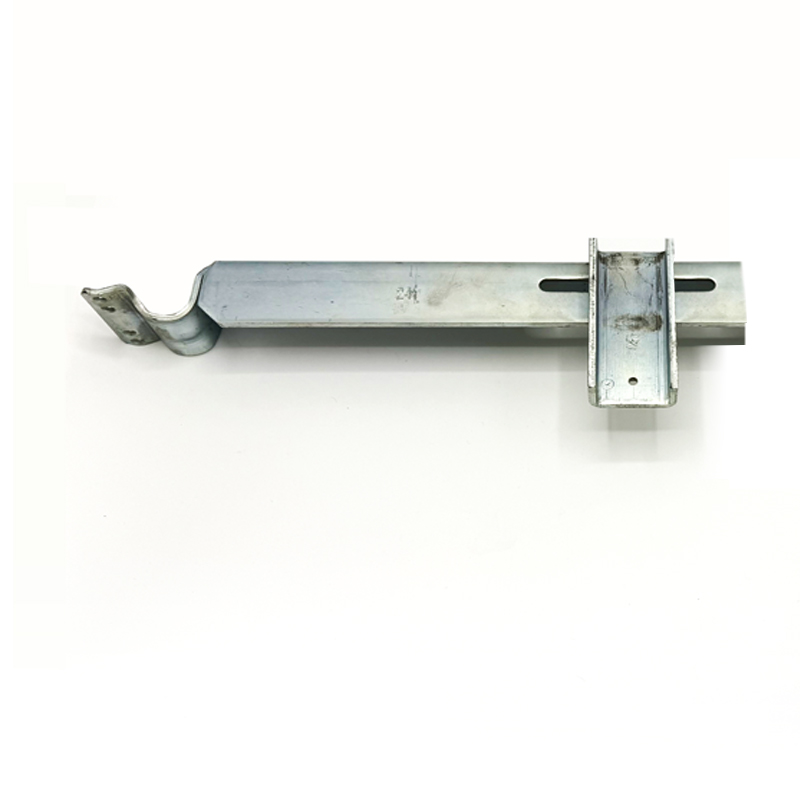

Single Arm Bracket

One piece formed steel bracket. U-bolt locks to any type of stanchion. No slipping. Special half-clamps not required. Special construction permits vertical height adjustment. Flat top accommodates full width shelf. Rail fastens with self-tapping screws (provided). U-bolt and nuts furnished. Load capacity 300 lbs.

Part Number:   P-RA1450-00, P-RA1451-00, P-RA1452-00, P-RA1453-00, P-RA1454-00, P-RA1455-00

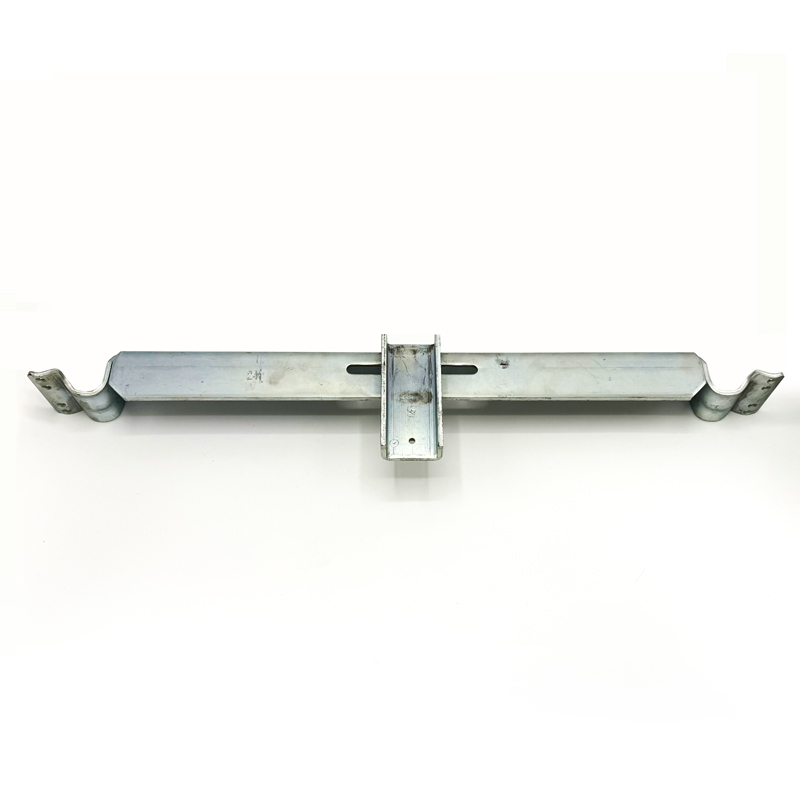

Double Arm Bracket

One-piece formed steel bracket. U-bolt secures the bracket to any stanchion with no slipping. Special design allows vertical adjustment while keeping the rail parallel. Flat top supports full-width shelves. Fits up to 1" pipe or 1-1/5" tubing; fastens with included self-tapping screws. U-bolt and nuts furnished. Extra-wide cradle provides added rail stability. Load capacity: 300 lbs per side.

Part Number:   P-RA1459-00, P-RA1560-00, P-RA1461-00, P-RA1462-00, P-RA1463-00, P-RA1464-00, P-RA1464-01, P-RA1464-03, P-RA1465-00, P-RA1465-01

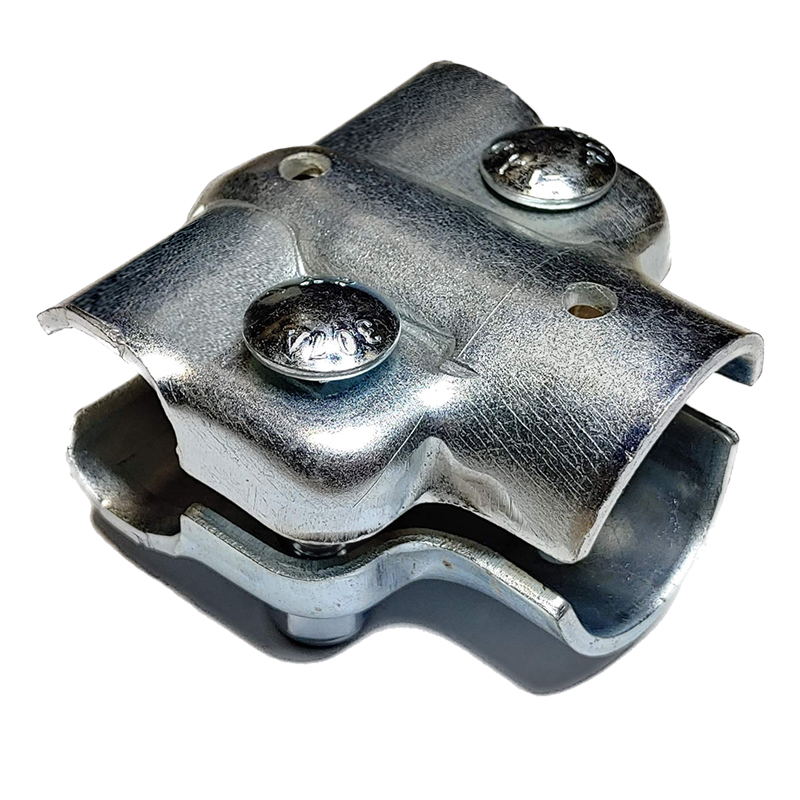

Brace Clamp 1 1/4in x 1 1/4in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA1471-00

Brace Clamp 1in x 1in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA1467-00

Brace Clamp 3/4in x 3/4in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA1466-00

Brace Clamp 1in x 3/4in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA1468-00

Brace Clamp 1 1/4in x 1in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA1470-00

Brace Clamp 1 1/4in x 3/4in

Used for bracing, suspending, forming headers. Positively locks pipes or tubing into place. New reinforcing rib (1) prevents clamp from opening up and rotating. Longer skirt length (2) and lower location of nuts and bolts gives greater holding power. Looseness or wiggle of braced pipe eliminated. Greater width (3) across face adds stability. Nuts, bolts, and self-tapping screws furnished. Load cap. 500 lbs.

Part Number:   P-RA169-00

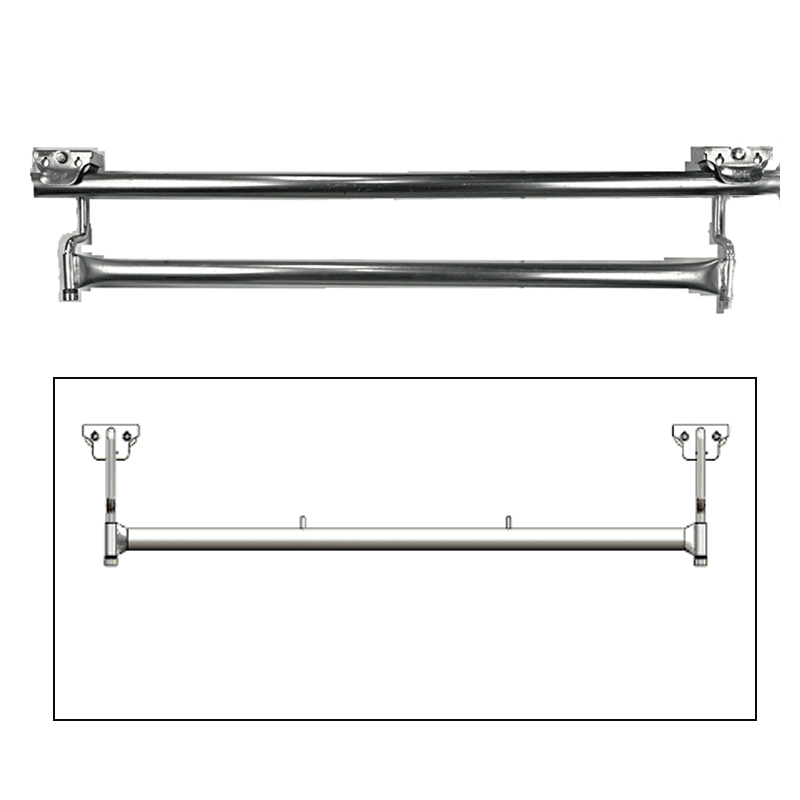

30in Speed Rail Trolley Assembly

The Speed Rail Trolley features all steel construction, load bar of zinc plated steel tubing, and two spools per head. Each spool is equipped with a double row of sealed bearings. A thrust washer is incorporated to maintain consistent, free swiveling of the head, allowing the trolley to track smoothly and effortlessly through curves and bends without binding. Usage with all rail up to 15/16" tubing. Load capacity is 200 lbs.

Part Number:   P-RA1516-00

Speed Rail Heavy Duty Trolley Assembly

More rugged construction and features than standard model Speed Rail Trolley. Heavy duty load bar of 1 1/4" diameter. zinc-plated steel tubing and larger trolley heads support increased load capacity of 300 lbs. Heavy duty hardened bearings, 1 1/2" diameter. x 1 1/4" width, with larger ball races, assure trouble free performance under severe conditions.

Part Number:

36in Speed Rail Trolley Assembly

The Speed Rail Trolley features all steel construction, load bar of zinc plated steel tubing, and two spools per head. Each spool is equipped with a double row of sealed bearings. A thrust washer is incorporated to maintain consistent, free swiveling of the head, allowing the trolley to track smoothly and effortlessly through curves and bends without binding. Usage with all rail up to 15/16" tubing. Load capacity is 200 lbs.

Part Number:   P-RA1517-00

42in Speed Rail Trolley Assembly

The Speed Rail Trolley features all steel construction, load bar of zinc plated steel tubing, and two spools per head. Each spool is equipped with a double row of sealed bearings. A thrust washer is incorporated to maintain consistent, free swiveling of the head, allowing the trolley to track smoothly and effortlessly through curves and bends without binding. Usage with all rail up to 15/16" tubing. Load capacity is 200 lbs.

Part Number:   P-RA1518-00

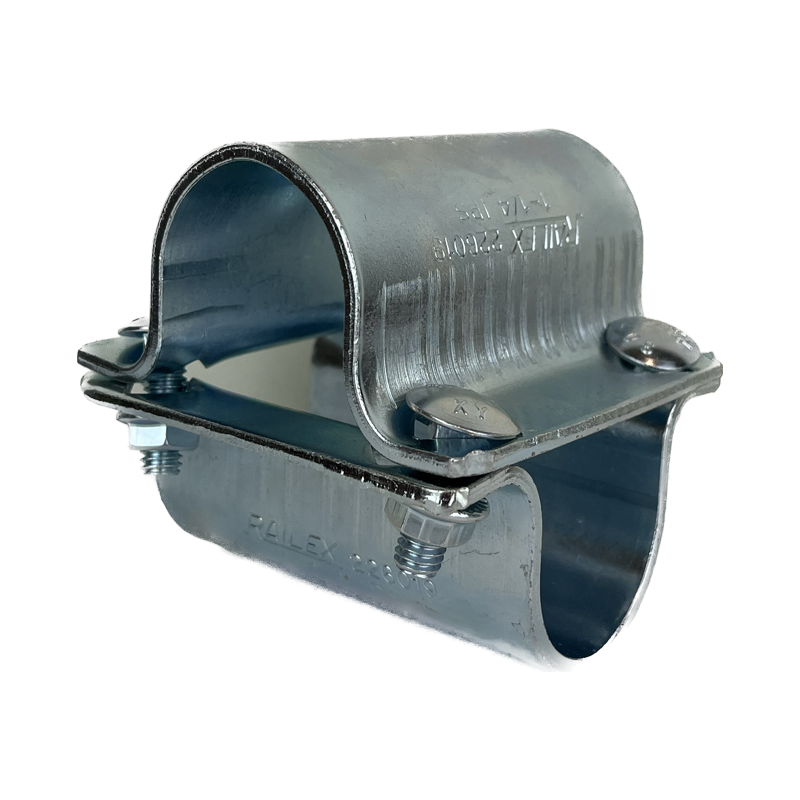

4-way Cross-Brace Clamp

Steel 4-way cross-brace clamp designed for the Continuous Slick Rail. It allows the connection of two 3/4" IPS pipes at right angles, allowing both pipes to pass through without requiring the pipes to be cut. The clamp provides structural bracing and stability for overhead rail or support systems. The 4-way cross-brace clamp is zinc-plated, which provides corrosion resistance and long-term durability, even in demanding environments.

Part Number:   P-RA2835-00

Cross-Brace Clamp LT x LT

Steel 4-way cross-brace clamp designed for the Continuous Slick Rail. It allows the connection of two 3/4" IPS pipes at right angles, allowing both pipes to pass through without requiring the pipes to be cut. The clamp provides structural bracing and stability for overhead rail or support systems. The 4-way cross-brace clamp is zinc-plated, which provides corrosion resistance and long-term durability, even in demanding environments.

Part Number:   P-RA2840-00

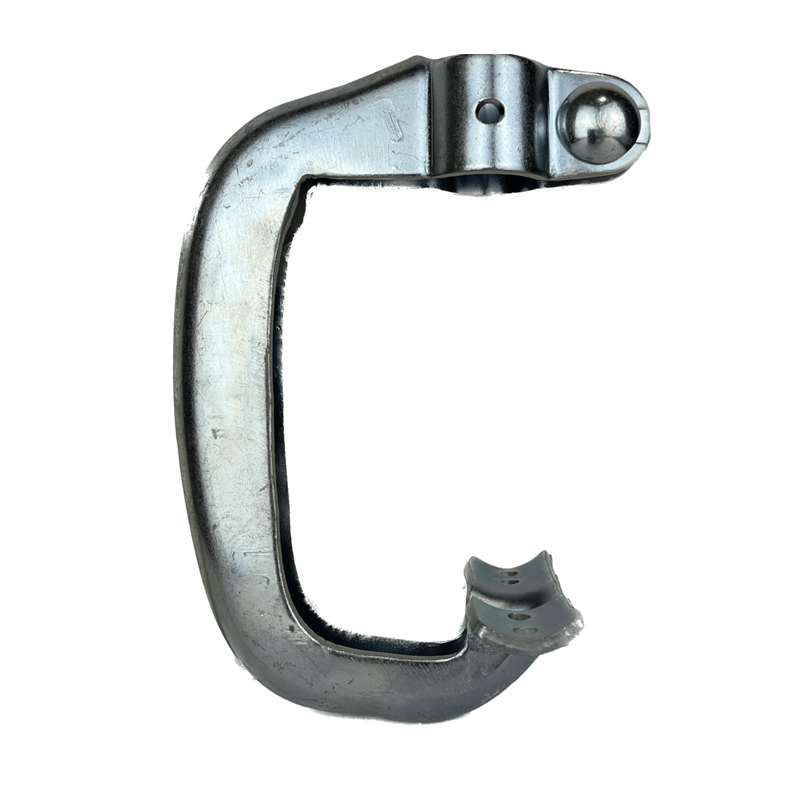

Rail Support

Rail-support fitting designed for the Continuous Slick Rail. This component slips securely over a suspension pipe and tightens using a non-slip nut to hold the rail firmly in place. It includes a built-in safety pinning hole to prevent movement or dislodging during use. Constructed from zinc-plated steel for strength and corrosion resistance, the 200-04-G2 provides reliable, long-lasting support in overhead conveyor and rail applications.

Part Number:   P-RA3651-00

Frames and Yokes

CV CHAIN 3-1/8 in CTR

Contin-U-Veyor Chain 3-1/8 in center

Part Number:   P-CV1055-08

NYLON FRAME LOWER 10 SLOT

NYLON FRAME LOWER 10 SLOT

Part Number:   P-GA1940-07

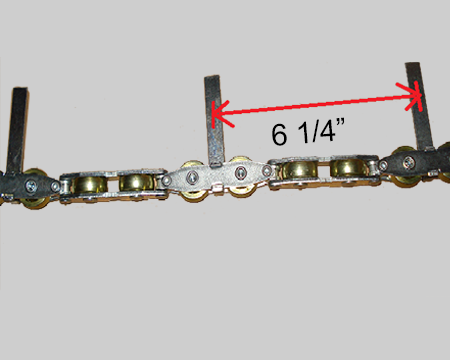

CV CHAIN 6-1/4 CTR W/HWR

CV CHAIN 6-1/4 CTR W/HWR

Part Number:   P-CV1055-06

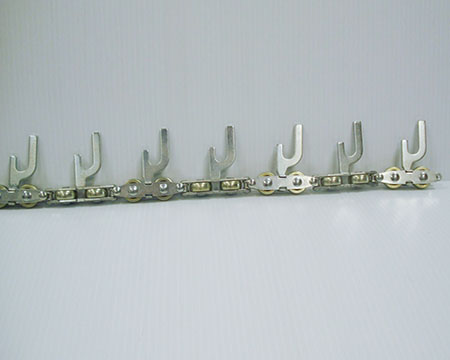

CV CHAIN 3-1/8 STEP

CV CHAIN 3-1/8 STEP

Part Number:   P-CV1055-20

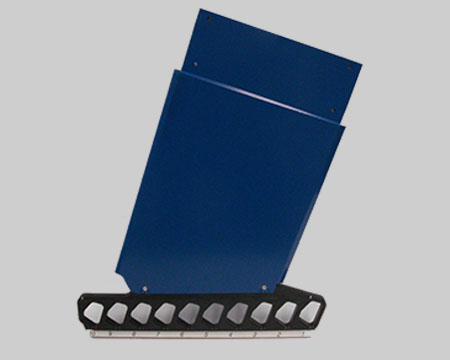

CARR ASSY/HWR SF 21-30 REV BLU

CARR ASSY/HWR SF 21-30 REV BLU

Part Number:   P-DT2156-72

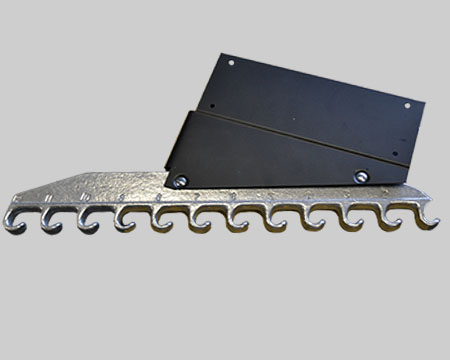

DT CARR 1-12 STD BLACK

DT CARR 1-12 STD BLACK

Part Number:   P-DT3751-01

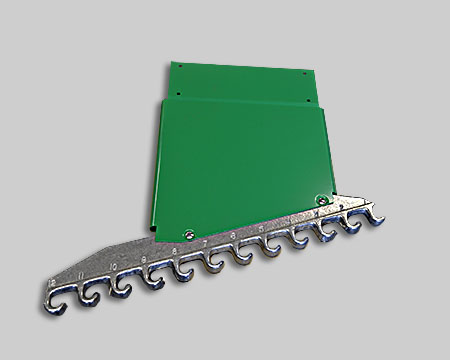

DT CARR 13-24 STD GREEN

DT CARR 13-24 STD GREEN

Part Number:   P-DT3752-01

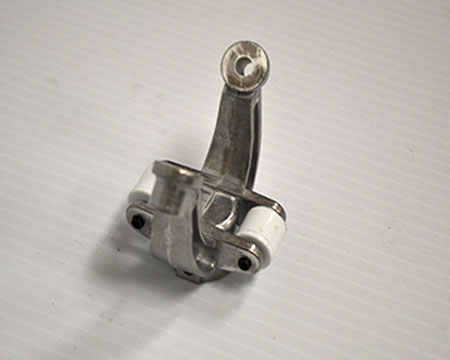

YOKE Y 1 W/ GUIDE ROLLERS

YOKE Y 1 W/ GUIDE ROLLERS

Part Number:   P-GA0015-01

WHEEL NYLON W/BEARING 1-3/8

WHEEL NYLON W/BEARING 1-3/8

Part Number:   P-GA0016-00

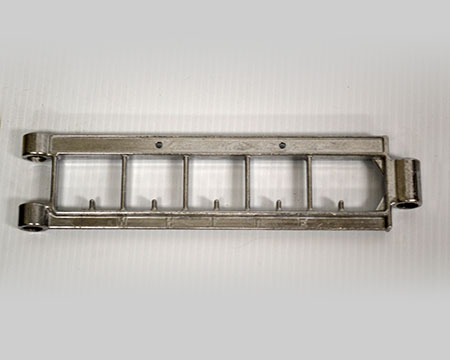

FRAME ALUMINUM W

FRAM ALUMINUM W

Part Number:   P-GA0053-01

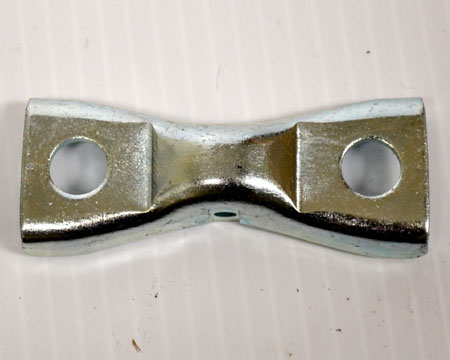

PAD DBL YOKE(STMPSTL)(-01 MOD

PAD DBL YOKE(STMPSTL)(-01 MOD

Part Number:   P-GA0340-02

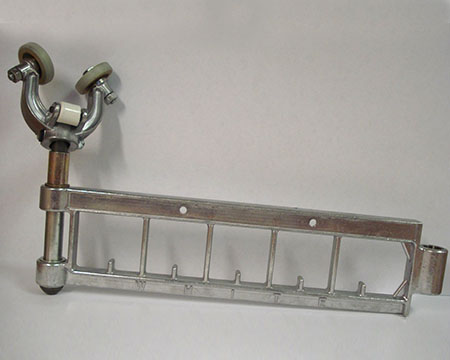

CHAIN W 1AYWAF & DS

CHAIN W 1AYWAF & DS

Part Number:   P-GA1531-02

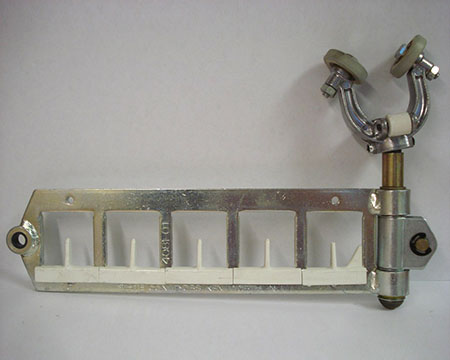

CHAIN N 1AYNSF

CHAIN N 1AYNSF

Part Number:   P-GA1538-05

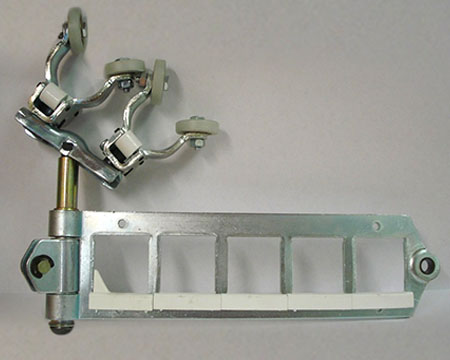

CHAIN ND CAT 2SYNSF/4 FLT/1HNG

CHAIN ND CAT 2SYNSF/4 FLT/1HNG

Part Number:   P-GA1539-22

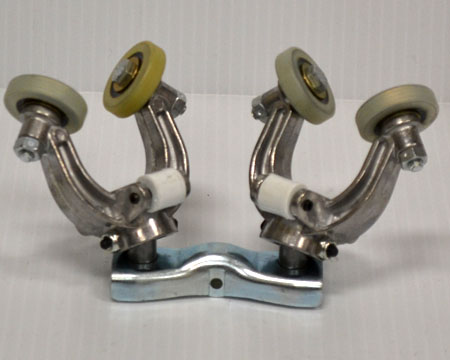

YOKE ASSY DOUBLE

YOKE ASSY DOUBLE

Part Number:   P-GA1541-00

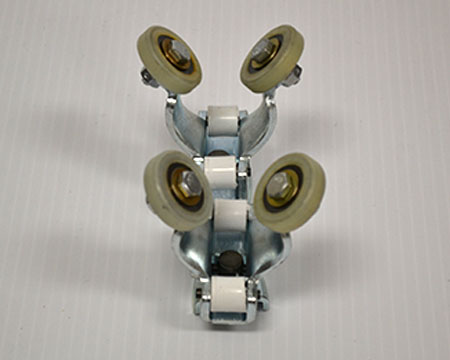

YOKE ASSY DBL ALL STEEL/HWR

YOKE ASSY DBL ALL STEEL/HWR

Part Number:   P-GA1541-01

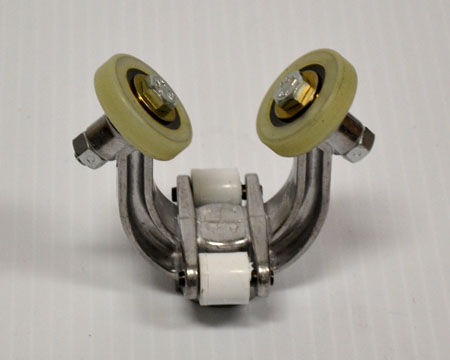

Single Yoke Assembly

Single Yoke Assembly

Part Number:   P-GA1542-01

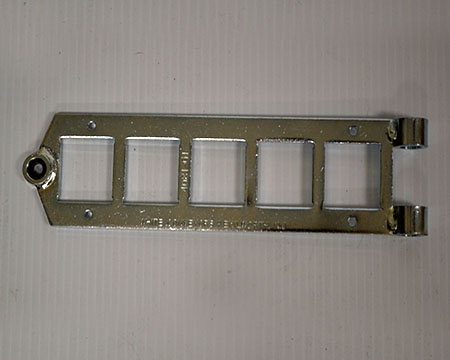

FRAME N ASSEMBLY

FRAME N ASSEMBLY

Part Number:   P-GA4081-00

FRAME N/ BZ BRG

FRAME N/ BZ BRG

Part Number:   P-GA4081-01
